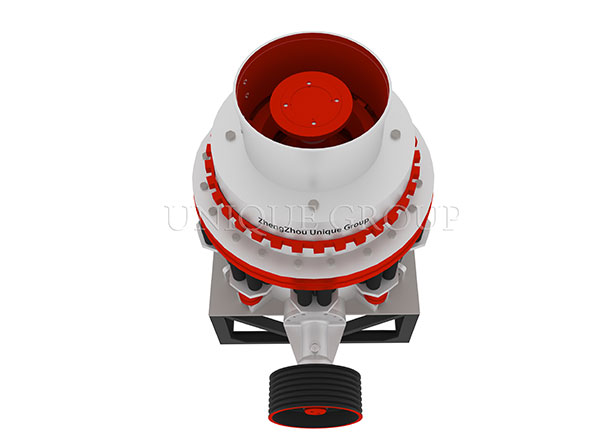

Symons Cone Crusher

Max. Feeding Size: 278mm

Capacity: 27-635 t/h

Engine Power: 75-220kw

Materials: Granite, marble, basalt, limestone, quartz stone, river gravel...

Field: Ore crushing, production of construction aggregates, water conservancy...

We're here to help:

Easy ways to get the answers you need.

Share With :

Introduction
Features
Technical Data
Inquiry

■ Introduction

Introduction of our Symons Cone Crusher

Our symons cone crusher has exported to many countries, such as Chile, Oman, Philippines, Tanzania, Indonesia, South Africa etc. It is made of high quality raw material and has reasonable structure design. It has longer running performance and even granularity. Furthermore, the middle and large size symons cone crusher adopts hydraulic clear chamber. That also reduces its down time. Symons cone crusher supplied by our company shall be your best choice. For our company Zhengzhou Unique Industrial Equipment Co., Ltd, has a professional, highly qualified, well experienced and responsible team.

Application of Symons Cone Crusher
It is widely used in the industries of metallurgy, building material, road construction, chemical engineering and silicate. Symons cone crusher is suitable for crushing all kinds of ores and rocks with hardness of medium or above.

■ Features

Advantages of Symons Cone Crusher
Our cone crusher has the advantages of high crushing ratio, high efficiency, high capacity, low operating cost, easy adjustment and economical operation.

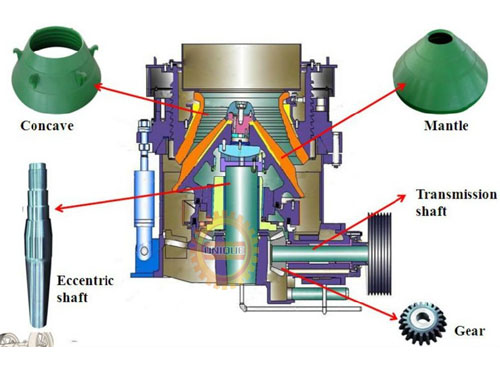

Working Principle of Symons Cone Crusher
It adopts grease sealing so as to prevent the watering and draining system from being blocked and avoid the defect of easy mix of water and oil. The spring safety system of Symons cone crusher is the protection unit against overload, and it can prevent the crushing chamber from foreign substance or iron pieces.

Type of Symons Cone Crusher
1. Standard type: it has larger discharge opening, and produce coarser crushed product. It is generally used for medium and coarse material

■ Technical Data

Type	Model		Type of Chamber	Diameter of Large End of Crushing Cone (mm)	Adjusting Range of Discharge Openjing (mm)	Feed Opening Size of the Open Edge When Recommending the min Discharge Opening (mm)	Max Feed Size (mm)	Producing Capacity (t/h)	Main Motor Power (kw)	Weight (kg)	Overall Dimension (L×W×H) (mm)
3’FT	PSGB-0910	standard fine type		900	9-22	102	85	45-91	75	9980	2656×1636×2241
	PSGB-0917	standard coarse type			13-38	175	150	59-163
	PSGB-0918	standard supper coarse type			25-38	178	150	118-163
	PSGD-0904	short head fine type			3-13	41	35	27-90		10530
	PSGD-0906	short head medium type			3-16	76	65	27-100
	PSGD-0907	short head coarse type			6-19	102	85	59-129
4.25’FT	PSGB-1313	standard fine type		1295	13-31	137	115	109-181	160	22460	2983×1866×3156
	PSGB-1321	standard medium type			16-38	210	178	132-253
	PSGB-1324	standard coarse type			19-51	241	205	172-349
	PSGB-1325	standard super coarse type			25-51	259	220	236-358
	PSGD-1306	short head fine type			3-16	64	54	36-163		22590
	PSGD-1308	short head medium type			6-16	89	76	82-163
	PSGD-1310	short head coarse type			8-25	105	89	109-227
	PSGD-1313	short head super coarse type			16-25	133	113	209-236
5.5’FT	PSGB-1620	standard fine type		1676	16-38	209	178	181-327	220	43270	3941×2954×3771
	PSGB-1624	standard medium type			22-51	241	205	258-417
	PSGB-1626	standard coarse type			25-64	269	228	199-635
	PSGB-1636	standard super coarse type			38-64	368	313	431-630
	PSGD-1607	short head fine type			5-13	70	60	90-209		43870
	PSGD-1608	short head medium type			6-19	89	76	136-281
	PSGD-1613	short head coarse type			10-25	133	113	190-336
	PSGD-1614	short head super coarse type			13-25	133	113	253-336
7’FT	PSGB-2127	standard fine type		2134	19-38	278	236	544-1034	400	86730	4613×3302×4638
