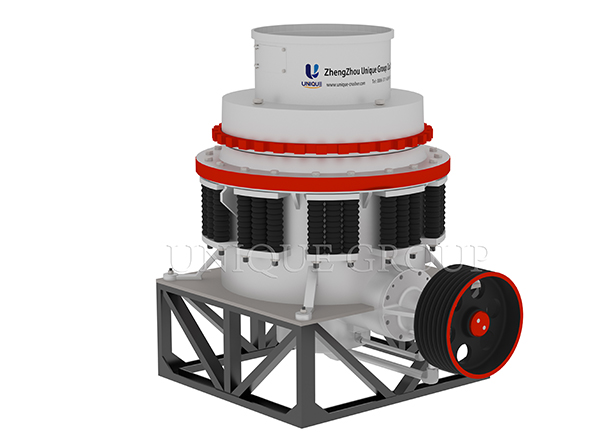

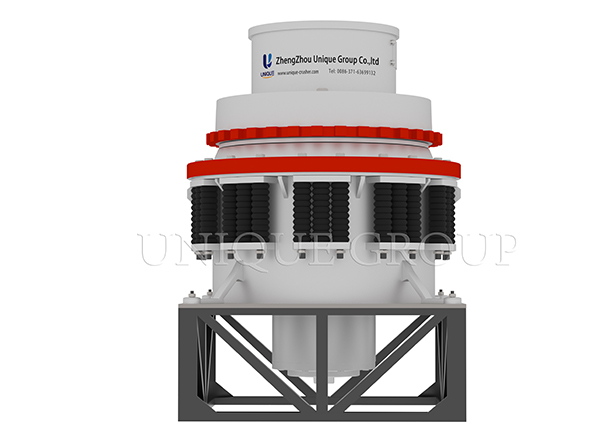

Introduction of Spring Cone Crusher
Spring cone crusher adopting world advanced technology is designed and made through to be the crusher of world advanced level. it is widely used in metallurgical, architectural, water and electricity, traffic, chemical, architectural material industries.
Feature and Advantage of Spring Cone Crusher
1. Reasonable structure advanced crushing principle and technical specification, reliable work and
low cost.
2. Strong crushing ability; High efficient productivity; High capacity.
3. Reliable Hydraulic system providing safe and effective overload protection.
4. Two type of crushing chamber are for wide range of product size requirement.
5. High automation adopting hydraulic adjustment and hydraulic clean cavity setting.
6. Discharging size of the final product: 3-60mm
Working principle of Spring Cone Crusher
When the Cone crusher is working, the motor drives the eccentric bearing bushing via spring coupling, transmission shaft and a couple of cone gear wheels. The crushing cone axis is forced to swing by the eccentric bearing bushing, which makes the mantle sometimes close to the bowl liner, and sometimes far away from the bowl liner. The raw materials are pressed, impacted and finally crushed in the crushing chamber.
Spring Cone Crusher Specification
|
Model |
Weight(t) |
Power(kw) |
Diameter(mm) |
Opening(mm) |
Feeding(mm) |
Discharge(mm) |
Capacity(t/h) |
|
|
PYB |
900 |
11.2 |
55 |
900 |
135 |
115 |
15-50 |
60-105 |
|
PYZ |
70 |
60 |
5-20 |
50-90 |
||||
|
PYD |
50 |
50 |
3-13 |
15-50 |
||||
|
PYB |
1200 |
35 |
110 |
1200 |
170 |
145 |
20-50 |
110-168 |
|
PYZ |
115 |
100 |
8-25 |
42-135 |
||||
|
PYD |
60 |
50 |
3-15 |
18-105 |
||||
|
PYB |
1750 |
50.2 |
160 |
1750 |
250 |
215 |
25-50 |
280-480 |
|
PYZ |
215 |
185 |
10-30 |
115-320 |
||||
|
PYD |
100 |
85 |
5-13 |
75-230 |
||||
|
PYB |
2200 |
80 |
260 280 |
2200 |
350 |
300 |
30-60 |
590-1000 |
|
PYZ |
275 |
230 |
10-30 |
200-580 |
||||
|
PYD |
130 |
100 |
5-15 |
125 |
||||
