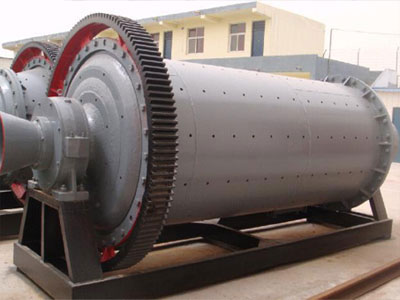

Rod Mill

Model: MBS0918

Diameter: 900mm

Length: 1800mm

Rotate speed: 36-38r/min

Feed size: ≤25mm

Discharge size: 0.833-0.147mm

We're here to help:

Easy ways to get the answers you need.

Share With :

Introduction
Features
Technical Data
Inquiry

■ Introduction

Rod Mill Introduction:

Two types rod mill for optional, wet grinding and dry grinding, which Customer can choose it accordingly.

Our company adopts advance technology of controllable feeding and discharging, provide grinding medium corresponding with raw material and change the triditional point contact into line contact for making sure the output size more uniformly with high capacity. Our rod mill now is widely using for refractory material, chemical industry, metallurgy,glass which may asks high quality for the uniformity of the final products. It has been also using for getting building sand recently.

■ Features

Rod Mill Performance Feature:

The grinding medium and ore material are line contact which there is selectivity for ore grinding. It avoids over crushing for getting uniform granularity. Rod mill has bigger capacity than other type ball mill when it is doing coarse grinding. Vice versa.

Rod Mill Working Principle:

Motor drives cylinder rotating by reduction gear. Frictional force and centrifugal force bring aterial and steel bar inside ball mill to a level, then drop down by gravity. The material being grinded and discharged eventually. The material goes through spiral classifier for getting acceptable products, and coarse product goes back to ball mill for re-grinding. The material being fed continuously inside rod mill uniformly by combined feeder, and discharge the final products overflow after being crushed.

■ Technical Data

Technical Parameter of Rod Mill

Model	Specifications (mm)		Rotate speed (r/min)	Feed size (mm)	Discharge size (mm)	Capacity (t/h)	Motor (kw)	Weight (kgs)
Model	Diameter	Length	Rotate speed (r/min)	Feed size (mm)	Discharge size (mm)	Capacity (t/h)	Motor (kw)	Weight (kgs)
MBS0918	900	1800	36-38	≤25	0.833-0.147	0.62-3.2	18.5	5500
MBS0924	900	2400	36	≤25	0.833-0.147	0.81-4.3	22	6100
MBS1224	1200	2400	36	≤25	0.833-0.147	1.1-4.9	30	12000
MBS1530	1500	3000	29.7	≤25	0.833-0.147	2.4-7.5	75	16800
MBS1830	1830	3000	25.4	≤25	0.833-0.147	4.8-11.6	130	29000
MBS2130	2100	3000	23.7	≤25	0.833-0.147	14-35	155	34800
MBS2136	2100	3600	23.7	≤25	0.833-0.147	19-43	180	37000
MBS2430	2400	3000	21	≤50	0.833-0.147	25-65	245	54000
MBS2736	2700	3600	20.7	≤50	0.833-0.147	32-86	380	86000
MBS2740	2700	4000	20.7	≤50	0.833-0.147	32-92	400	94000
MBS3245	3200	4500	18	≤50	0.833-0.147	64-180	630	137000
